This special page shows all uploaded files.
| Date | Name | Thumbnail | Size | Description | Versions |
|---|---|---|---|---|---|

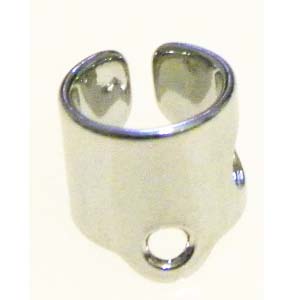

| 21:45, 22 June 2013 | Needle Bar Thread Guide Juki 229-06309.jpg (file) |  |
6 KB | Needle Bar Thread Guide, Juki #229-06309 | 1 |

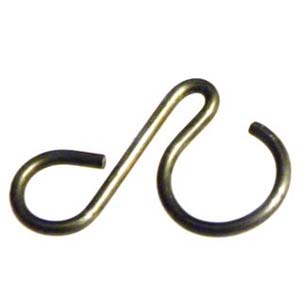

| 21:43, 22 June 2013 | Needle Bar Thread Guide Juki 229-20805.jpg (file) |  |
7 KB | Needle Bar Thread Guide, Juki #229-20805 for our Juki DDL-5550 | 1 |
| 21:35, 22 June 2013 | Needle Bar.JPG (file) |  |
6 KB | Part of the Juki Sewing machine | 1 |
| 19:43, 14 November 2011 | Ilya Zhitomirskiy Animation.gif (file) |  |
652 KB | 1 | |
| 01:26, 12 June 2011 | IMG 0026.jpg (file) |  |
245 KB | Diatom imaged in fast scan mode (lower resolution than slow scan mode). Magnification unrecorded. Chris Murphy, Mike Kan. 12/12/10 | 1 |
| 16:54, 6 June 2011 | Allen close up.jpg (file) |  |
170 KB | Head of a small 2mm allen type machine screw. About 1000x magnification. This is post repair of X Stigmator. Mike Kan, Chris Murphy | 1 |
| 16:46, 6 June 2011 | IMG 0007.jpg (file) |  |
180 KB | Head of a small 2mm allen type machine screw. This is post repair of X Stigmator. | 1 |
| 17:02, 2 May 2011 | Undertrimmer.jpg (file) |  |
24 KB | Knives for juki sewing machine | 1 |
| 16:21, 2 May 2011 | Knifewrench.jpg (file) |  |
144 KB | Wrench used to replace sewing machine knife | 1 |
| 00:28, 11 December 2010 | IMG 0657.jpg (file) |  |
831 KB | Tip of mechanical pencil graphite on aluminum slug. Maybe 10,000x magnification. This is post repair of X Stigmator. Imaged by the Noisebridge SEM. Mike Kan, Chris Murphy. | 1 |
| 00:24, 11 December 2010 | IMG 0656.jpg (file) |  |
573 KB | Tip of mechanical pencil graphite on aluminum slug. Maybe 5000x magnification. This is post repair of X Stigmator. Imaged by the Noisebridge SEM. Mike Kan, Chris Murphy. | 1 |
| 00:21, 11 December 2010 | IMG 0654.jpg (file) |  |
638 KB | Tip of mechanical pencil graphite on aluminum slug. Maybe 1000x magnification. This is post repair of X Stigmator. Imaged by the Noisebridge SEM. Mike Kan, Chris Murphy. | 1 |
| 00:17, 11 December 2010 | IMG 0655.jpg (file) |  |
642 KB | Mechanical Pencil Graphite imaged by the Noisebridge SEM. Mike Kan, Chris Murphy. | 2 |
| 00:10, 11 December 2010 | IMG 0652.jpg (file) |  |
733 KB | Mechanical Pencil Graphite on aluminium slug. 1000x magnification. Imaged by the Noisebridge SEM. Mike Kan, Chris Murphy. | 1 |
| 00:05, 11 December 2010 | IMG 0649.jpg (file) |  |
680 KB | Snapped metal region of a box cutter razor blade. Imaged on the Noisebridge SEM. About 5000x magnification. | 1 |
| 00:00, 11 December 2010 | IMG 0624.jpg (file) |  |
711 KB | Semiconductor ball grid array at 20x magnification prior to repairing the X Stigmator. | 1 |
| 18:09, 3 December 2010 | Packing Lists.pdf (file) |  |
830 KB | Two copies of the original packing lists for the TV MINI-SEM (Scanning Electron Microscope) | 1 |
| 17:47, 3 December 2010 | Polaron Pirani Schematics-PE Pir-SW Issue 4 E5000.pdf (file) | |
754 KB | Polaron Pirani Sputter Coater Schematics | 1 |
| 17:03, 3 December 2010 | TV MINI-SEM Schematics-Overall MRS-2-2 WN76-7-01 Mosaic v. 1.0 Low-Res.jpg (file) |  |
1.34 MB | LOW RESOLUTION 1.5MB : Schematics for the TV MINI-SEM (Scanning Electron Microscope). These schematics are for a model of SEM that is possibly slightly newer than than the SEM at Noisebridge. It is still an invaluable reference to the technician. Note: T | 1 |
| 16:16, 3 December 2010 | TV MINI-SEM Schematics-Overall MRS-2-2 WN76-7-01 Mosaic v. 1.0.jpg (file) |  |
7.62 MB | Schematics for the TV MINI-SEM (Scanning Electron Microscope). These schematics are for a model of SEM that is possibly slightly newer than than the SEM at Noisebridge. It is still an invaluable reference to the technician. Note: This schematic is a mosa | 1 |
| 19:24, 30 November 2010 | IMG 0004.jpg (file) |  |
398 KB | Image of mechanical pencil graphite at approximately 20x magnification. The specimen is about 1 mm across. Higher magnification images of this specimen are not available. Imaged by Chris Murphy and Mike Kan. | 1 |
| 16:14, 30 November 2010 | Specimen Stage Service Request.pdf (file) | |
4.85 MB | The rotating/tilting specimen stage was after market and never really worked well. This is a request to service it. As of 2010 it is broken/disconnected. | 1 |
| 16:03, 30 November 2010 | Schematic of Photomultiplier.pdf (file) | |
4.65 MB | Schematic of photomultiplier tube. Mike wants to replace this with a de-capped transistor. | 1 |
| 15:53, 30 November 2010 | Polaron Pirani Gauge Head for Sputter Coater.pdf (file) | |
4.9 MB | Schematic for just the gauge head of a sputter coater. Mike declared this gauge device useless. | 1 |
| 15:51, 30 November 2010 | Other Docs.pdf (file) | |
268 KB | Notes about maintenance issues. 741 drawing and notes on replacement by Mike Kan. Stage documents by a former owner. | 1 |
| 15:50, 30 November 2010 | Cards.pdf (file) | |
4.32 MB | Various Notes and images about our SEM from a previous owner | 1 |
| 15:48, 30 November 2010 | Vacuum System Operating Instructions.pdf (file) | |
85 KB | How to start up the Vacuum | 1 |
| 15:35, 30 November 2010 | ISI Mini-TV SEM Manual-Troubleshooting-Reference Guide.pdf (file) | |
2.97 MB | This is the manual to the SEM including the troubleshooting guide. | 1 |
